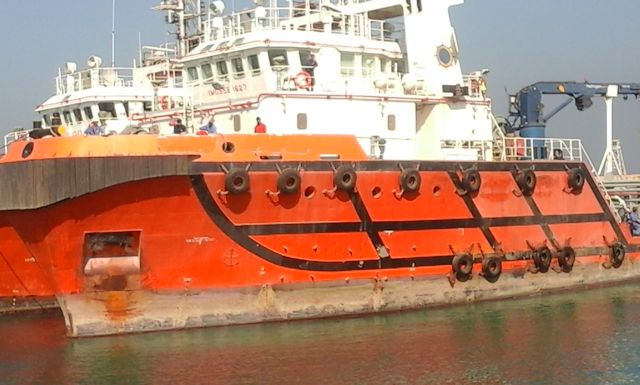

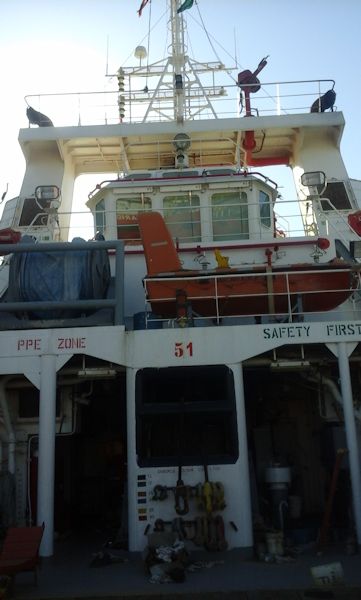

Supply Vessel

Press to Return to Supply Vessels Press to Return to Home Page



VESSEL IDENTIFIER:AGM11

Price: U.S. $7,000,000.00

DIMENSIONS

Feet Meters
Length 180.4 55.0
Width 45.3 13.8
Depth 18 5.5
Draft 15.6 4.76
Speed 12.5 Knots Max.
11 Knots Cruise
Consumption Gallons per hour

PARTICULARS
Flag Kuwait
Year Built 2011
Last Dry-docked
Location Kuwait
Class ABS
GRT 1,300
DWT 1,000 Tons
Deck Area 330 Square Meters (29Mx11.4M)
5 Tons/Sq.M
Complement 28 Crew - 7 Cabins

MORE INFORMATION AND PICTURES BELOW





Power

Main Engines

2 - Caterpillar 3516B
5,150 HP Total
Bow Thruster 5 Ton FPP
Propeller 2 Fixed Pitch 4 Blade
Bollard Pull 60 Tons
Generators 3 - Caterpillar 3406C 260KW
1 - Caterpillar 96 KW Emergency
Winch/Bollard Pull 1 - 100 Ton Hydraulic double drum waterfall
Other deck equipment

1000 M 0.50mm Rope Reel Winch
2 - 5 Ton Tugger
2 - 5 Ton Capstan
2 - Tow Pins
1 - 200 MT Shark Jaw
1 - 80 T Smit Tow Bollard

Deck Crane 1 - Pslfinger 5 Ton @ 8m Radius
Tankage Fuel - 400 Cubic Meters
Fresh Water - 380 Cu. M.
Ballast - 130 Cu. M.
Mud - 100 Cu. M.
Dry Bulk Cement - 117 u. M.
Foam - 11 Cu. M.
Detergent - 4 Cu. M.
Lube Oil - 5.9 Cu. M.
Hydraulic Oil - 1.7 Cu. M.
Dirty Oil - 12 Cu. M.
Sewage Holding - 11 Cu. M.
Dirty Water - 114 Cu. M.
