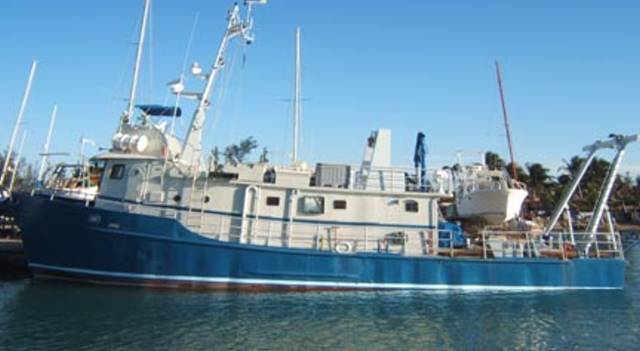

De-Listed - Research Vessel

Please scroll down on this page for the most extensive list of equipment you will find on any boat.

VESSEL IDENTIFIER: CAL10

Price: U.S. $ 495,000.00

EQUIPMENT LIST

As one’s reads through the exhaustive list of equipment below, one word comes to mind: redundancy.  Indeed, there is a great deal of equipment that comes in pairs.  Nothing was spared to make the operation of  this boat safe, reliable and efficient.

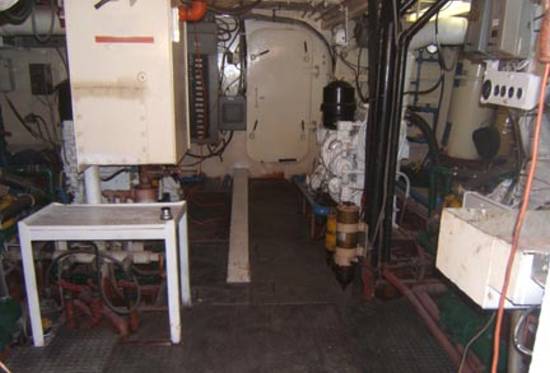

Engine room
-  2 General Motors 6-71 diesel motors, 180hp Cont. (replaced new in 1990)
(low hours: 1875 & 1799)
-  2 Keel cooled General Motors 4-71 diesel generator, 30 kw, 208 vac, 3 ph, 60 Hz,
              110/220 vac single phase
-  2 Black water evacuation pumps
-  3 Fire systems – 5hp individual electric pumps
-  2 Fresh water system (0.5 hp electric pumps)
-  3 Keel cooled air conditioning systems & one 110 volts
-  2 Spare separate hydrolube tanks of 20 gals. each
-  2 2 hp two inch. Linguard fire pump
-  2 Fuel tanks (total 4800 gals.)
-  2 Water tanks (total 1700 gals.)
-  3 Hydraulic systems (all connected or separate)
-  2 Air compressors
-  Portable dive compressor
-  3 Separate automatic 12 volts bilge pumps systems (3200 gals/hour each)
-  220 volts 2 inch emergency bilge pump
-  2 Separate and alternate 110/220 volts breaker panels
-  4 battery chargers (one 24 volts, three 12 volts)
-  6 Batteries (4D)
-  Alarm system throughout the vessel
-  40 gals hot water heater
-  Hot and cold water sink
-  40 gals. oil storage tank
-  Large holding tank for back and grey water
-  All color coded pipes system
-  Crossover switch for quick starting
-  Transformer (60 Kw.)
-  Electrical lines input for 220 volts (full service) or 110 volts (limited service)
-  5 portable fire extinguishers

Workshop
-  2 steering systems (hydraulic & cables)
-  Offshore Marine Labs water maker (200 gals. per day)
-  2 halon fire extinguisher systems
-  Spare fuel tank (1500 gals)
-  Work benches with vice
-  2 Portable 3# inch water pumps (Pear gas & Yanmar diesel)
-  Full set of electrical and hand tools
-  3 Electrical fans
-  Lots of spare parts

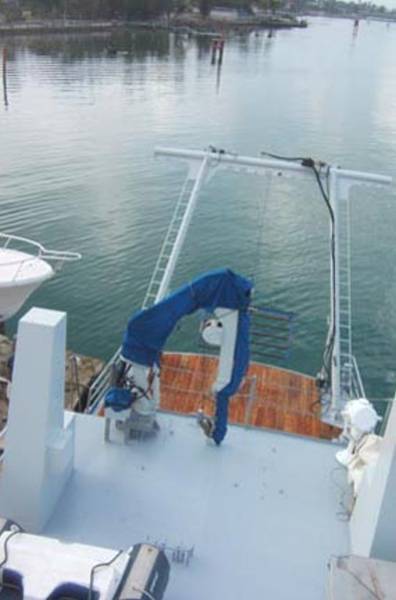

Back Deck
-  2 Fire pump outlets
-  Various hydraulic outlets
-  Stern “A” frame, 17 ft. high x 17 ft. wide with hydraulic winch
-  Large hydraulic winch with 2 slip rings, 8 tons capacity
-  Lindgren Pittman hydraulic capstran, 4000lbs capacity
-  Towing bar
-  Controls for engine
-  New 2 inch thick mahogany board deck
-  Half inch bolt tiedown fittings every 2 feet
-  Tool room
-  Replaceable rail
-  Dinghy davit and swimming ladder
-  4 large stop lights
-  Aluminum swimming ladder


Top Deck
-  Duarry 14 ft. inflatable boat with hard bottom and center console
-  Hiab 30 hydraulic Sea Crane, capacity 1200 to 2000 lbs.
-  Numerous tiedowns
-  Large 2000 candlelights spotlight
-  Large EPIRB
-  2 life rafts for 6 persons in fiberglass cases
-  2 TV antennas (hydraulic and stationary)
-  Large fiberglass container with 10 air bags
-  Miscellaneous safety equipment
-  Aluminum top deck table for 4 persons

Fly deck
-  Repeaters for 2 engine controls
-  Repeater for hydraulic anchor chain
-  Repeater for autopilot
-  SS helm
-  Large 2000 candlelights spotlight
-  30 feet steel mast with stepladder, antennas, flag poles
-  2 sets of running light
-  IG-M 100 VHF (25 watts)
-  Repeater for Furano depth sounder
-  PA system
-  Blue bimini top
-  Gyrocompass
-  Spare hydraulic outlets
-  2 captain chairs with tiedowns
-  Teak deck box
-  Teak floor

Fore deck
-  3 hydraulic pumps
-  Hydraulic windlass
-  2 Outboard motors (25 hp Yamaha & 25 hp Evenrude with electric starter)
-  Ship’s bronze bell
-  Air horn
-  150 lbs Fluke anchor with 220 ft of 1.5 inch chain
-  Spare Danford anchor 80 lbs with     of 1.5 inch chain
-  30 lbs. Grappin anchor
-  300 ft. of 3 inch tow rope with large shackles
-  1000 ft. of miscellenous lines (larger than 1 inch)
-  Various 1.5 inch mooring lines
-  3 Very large round fenders

Pilothouse
-  2 radars (Furano 805D and 803), 48 miles
-  2 GPS (Garmin GPS 128 & Garmin GPSMAP 225)
-  7X Tasco Offshore 36 binocular with compass and light
-  Night vision binoculars
-  Sperry Marine Model SR 12-/130 gyrocompass
-  Magnetic compass
-  Spare hydraulic outlets
-  Furano 200kHz Colour sounder
-  Sperry Marine Model SRD331 speed log
-  Robertson AP 45 autopilot interfaced  (2 separate hydraulic systems)
-  Robertson RI455 rudder indicator
-  ICOM ICM-125 VHF (25 watt)
-  Single Side Band (120 watts SEA222)
-  Bendix Friz 135 aerovane indicator
-  2 captain’s benchs
-  Chart table with storage drawers
-  Night lights
-  3 electrical control panels (2 x 12 & 1 x 24 volts)
-  Teak floor and teak grating
-  Large barometer
-  Large mechanical clock
-  2 First aid kits
-  Intercom throughout the vessel

Galley
-  All teak wood floor
-  Panoramic porthole over table
-  Teak foldable mess table with windrose design
-  12 cu. ft. Kenmore 110v. refrigerator with freezer section
-  Large 220 volts Lana stove with 4 heating plates and oven
-  Stove antiskid bars
-  Stove fan
-  General Electric microwave
-   Kenmore trash compactor
-  8 cu. ft. General Electric freezer
-  Infrared water purifier with filters
-  Complete supply of chinaware, utensils, pots and pans
-  Lots a pantry
-  Wine rack
-  Coffee maker

Accommodations

-  Large (20 ft. x 18 ft.) living room with all teak floor, lots of storage and tie down
                   book shelves
-  4 double cabins with 2 bunk beds each

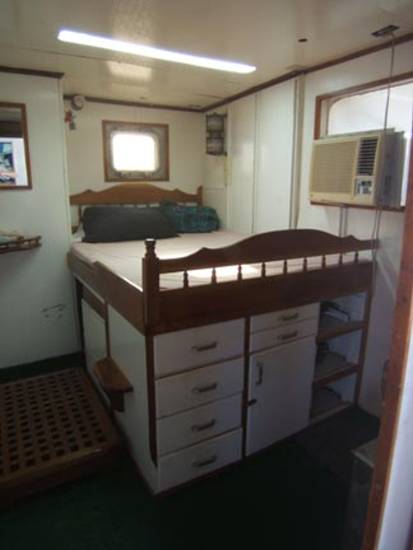

-  One master cabin with separate AC, queen size bed, lots of storage and tie downs
-  2 heads with hot and cold water shower, sink and regular flushing toilet
-  Large storage under pilothouse, under hallway and bedroom floors
-  Air conditioning throughout the vessel
-  Emergency lighting throughout the vessel
