SOLD - Chemical Tanker
This double hull/bottom tanker has 4/8 tanks port and
starboard that are Epoxy coated with SUS heating coils. The two Gear cargo
pumps have a 150M3 per hour each. Her electronics
include GMDSS A1-A2-A3, GPS, Gyro Compass, Navtex and much more. She has
an alarm system which meets the strict requirements for seagoing chemical
tankers.
VESSEL IDENTIFIER: DH10
Price: U.S. $ 600,000.00
DIMENSIONS |
| Length |
216 |
65.8 |
| Breadth |
35 |
10.67 |
| Draft |
14.5 |
4.4 |
| Speed |
11
Knots |
| Consumption |
3.2
MT/day |
| PARTICULARS |
| Flag |
Cambodia |
| Year Built |
1981 |
| Current
Location |
Vietnam |
| Last Dry-docked |
May 2004 - Vietnam |
| Class |
Chemical Tanker IMO II & III |
| Certificates |
|
| GRT |
930 |
| DWT |
1,483 |
| Cargo
Capacity |
1,299 M3 |
| Equipment |
| Main Engine |
Daihatsu 1600 PS x 450 RPM |
| Generator |
Yanmar 145 PS
Yanmar 38 PS
Shaft Generator 145 PS |
| Propulsion |
CPP |
| Bow Thruster |
No |
| Fuel Capacity |
150 Tons |
1.Cargo tanks:
No. 1 P 161.410 M3 Epoxy coated & SUS 304 Heating
coil fitted
No. 1 S 161.490 M3 Epoxy coated & SUS 304 Heating
coil fitted
No. 2 P 166.580 M3 SUS 304 & SUS 304 Heating coil
fitted
No. 2 S 166.820 M3 SUS 304 & SUS 304 Heating coil
fitted
No. 3 P 165.469 M3 SUS 304 & SUS 304 Heating coil
fitted
No. 3 S 165.416 M3 SUS 304 & SUS 304 Heating coil
fitted
No. 4 P 156.146 M3 Epoxy coated & SUS304 Heating
coil fitted
No. 4 S 156.189 M3 Epoxy coated & SUS304 Heating
coil fitted
Total capacity: 1,299.520 M3
Cargo tanks were designed with high level gauges, air
pots, sounding pipes and common loading/suction valves, bell mouses for two
grade cargo loading system.
2.Slop , Ballast , Oil tanks
Fresh water tank capacity: 176.136 M3
Water ballast tank capacity: 555.993 M3 Slop tank
capacity: 39M3
Fuel oil Tank capacity: FO: 133.480M3 DO: 18.51M3
Ballast , fuel , fresh water tanks had been cleaned
out of mud, soil and renewed some rusted ballast pipelines/ plates. Slop
tanks had been renewed and coated epoxy paint.
3.Pump Room02 cargo gear pumps 180 ps x 450 rpm with
200 M3/hr of capacity , distributed valves/lines of 200A/150A . and a fresh
water transfer pump .
4. Boiler Clayton steam generator model NE-805 10.38
M3 of capacity. Consumption 0.7Mt/hr
5. Air compressor 02 sets.
6. Oily water separator 01 set
7. Purifier 01 set of FO & LO respectively.
8. Steering gear 03 motor pumps and 01 ram.
9. Switch board alarm / gauge panel in control room.
10. CPP 01 set of C.P.P. equipment on M/E.
11. Pumps fitted in Engine room: ballast pump 01 set,
Bilge pump 01 set, G.S / Fire pump 01 set, FO transfer & service pump 01 set,
DO transfer & service pump 01 set, LO transfer pump 01 set, M/E , G/E cooling
pump 01 set.

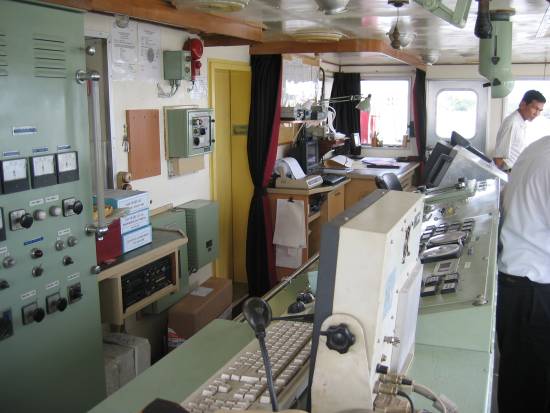

12. Navigation Radio EquipmentsGyro compass and
repeater 01 set, magnetic compass 01 set. 02 radars , Echo Sounder, 2,182Khz
Auto Alarm, GMDSS system MF/HF/DSC 01 set, MF/HF/NBDP 01 set, INMARSAT-C 01
SET, VHF /DSC 02sets, E-BIRD-406MHZ 01 SET, SART 02 sets, Natex 01 set, GPS
01set. AIS - Protec 01 set, SAS 01 set . Engine bridge control system. Cargo
monitor system with high level , temperature alarm fitted in consol box in
bridge.
13. Fire fighting appliances: CO2 system for engine
room and fixed foam system for deck. Emergency fire pump fitted in bosun
store.
14. Life saving equipment 02 life boats 02 life rafts
.

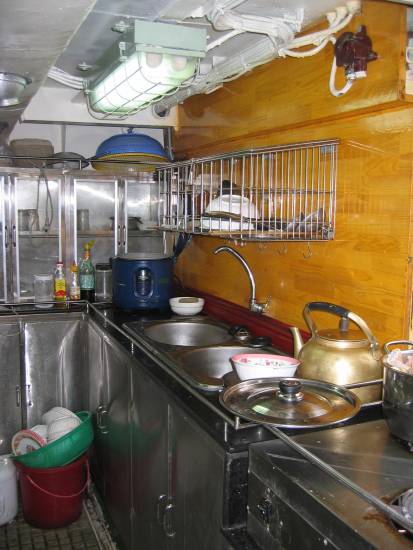

15. Accommodation 07 cabins for 12 crews, 01 mess
room / saloon .
16. Her class: Vietnam Register of Shipping VIRES.
VRH II Tanker , Chemical Type II and III ESP
17. Next DD: 11/2006 (Last 5/2004)
Next SS: 5/ 2009 (Last 5/2004)
She is trading around South East Asia .(Carrying palm
oil products, chemical cargo IMO II, III).
