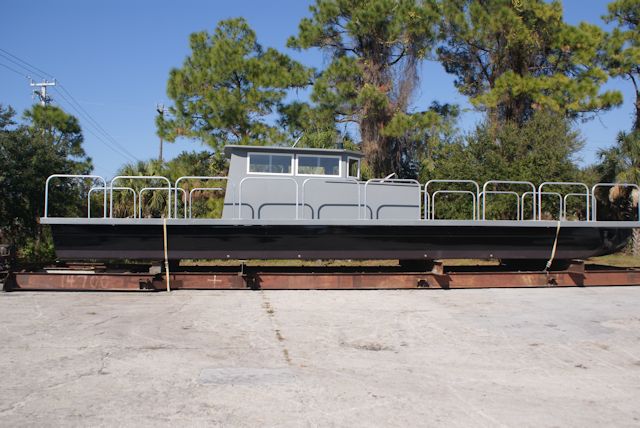

This NEW heavy duty barge was built by to accept outboards as shown in the photos.  It was designed for oil recovery.

One 1500 gal tank is mounted in each OB pontoon (total 3000 gal )  center pontoon has 250gal fuel tank aft and another 250 gal fuel tank fwd of pilot house.  You are able to walk below deck where two bunks and full shower/toilet are located with 100 gal water tank.

VESSEL IDENTIFIER: DNE10

Price: U.S. $ 120,000.00

DIMENSIONS

Feet
Length 58
Width 14'4"
Depth 13
Draft 12" - 14"
Displacement 23,000 Lbs.
Construction Material Hand Laid Fiberglass
Year Built New
Location Southeast Florida
Flag None

























Port Bunk…………………….30” x  86”
Stbd Bunk…………………….31” x  124”
Passageway ……………….. 33”
Cabin House width interior.….…8’
Cabin House head room………….6’ 5”

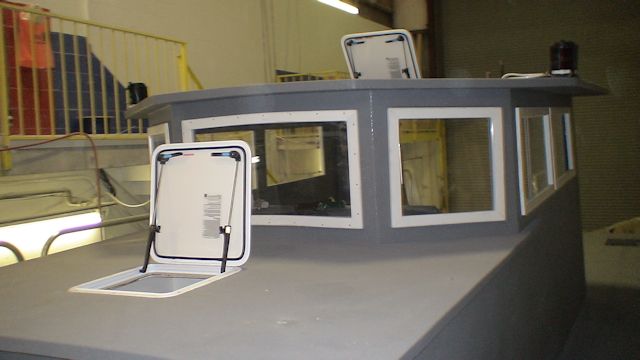

Deck hatches………………………….19” x  19”
Door entrance width………………26”

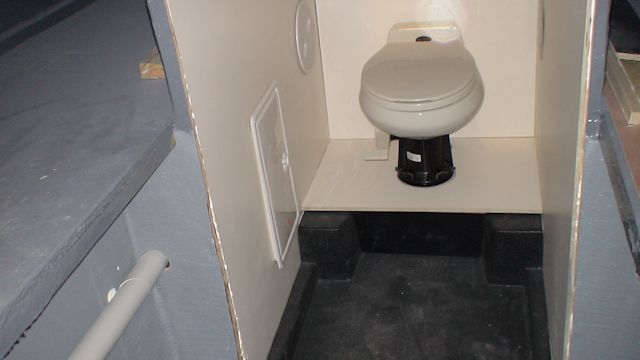

 Head with shower
2 bunks over 7’ long
2 aluminum engine brackets (300hp)
2 30” x 48’ cylinder holding tanks 1500 gal each
1 100 gal water tank
1 10  gal black water holding tank
1 250 gal fuel tank aft
1 250 gal fuel tank fwd
Removable hand rails
Sliding and hinged windows
Structural Aluminum Deck with pressure treated ” plywood
LINEX sealing house n deck
LINEX applied to bilges
Awlgrip jet black Pontoons
SeaHawk Bottom Paint
