De-Listed - Tugboat
| Press to Return to Tugboats | Press to Return to Home Page |
This tug is in working condition but needs a turbo on the port engine.
VESSEL IDENTIFIER: JNX10
DIMENSIONS |
||
| Feet | Meters | |
| Length | 111.6 | 34 |
| Width | 30.18 | 9.2 |
| Depth | 13.94 | 4.25 |
| Draft | 13.057 | 4.0 |
| Speed | 12 Knots | |
| Consumption | gallons/ | |
| PARTICULARS | |
| Flag | US |
| Year Built | 1976 - Japan |
| Last Dry-docked | 2012 |
| Class | ABS A1 E Unrestricted Ocean Towing LAYED UP |
| Location | Bahamas |
| GRT/NRT | 377/49 |
|
Accommodations |
8 Crew 4 Passengers |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
2 - Niigata 6MG25BX Diesel 2,500 HP Total @ 750 RPM |
|
Bow Thruster |
1.5 Ton Electric |
| Propeller | Twin in Kort Nozzles |
| Bollard Pull | 34 Tons |

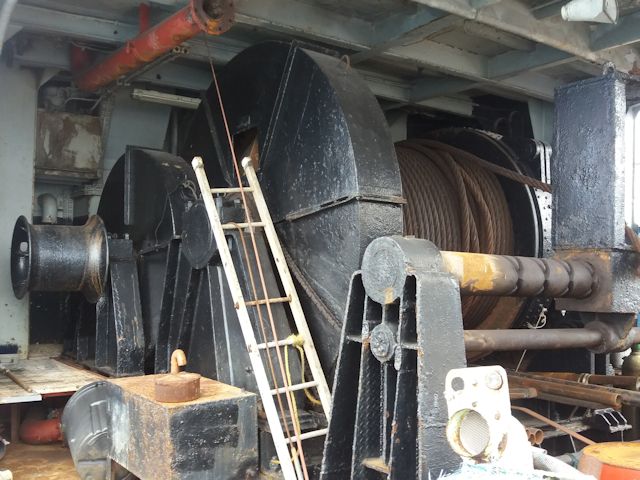

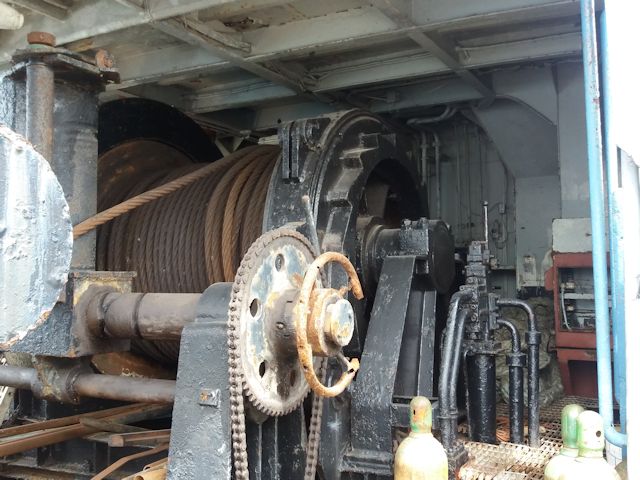

| Winch | Single Drum 600 Meters/48 MM Wire |
| Generator | 1 - 80 KVA 1 - 35 KVA 1 - 200 KVA 38 V 50 Hz. |
| Fuel Capacity | 59,000 Gallons |
| Water | 100 M3 |
| FiFi | 1.5 Ton Thrust 700 Cu. M. |
