DP-1 Supply Vessel

Press to Return to Supply Vessels Press to Return to Home Page



VESSEL IDENTIFIER: MRE10

Price: U.S. $5,800,000.00

DIMENSIONS

Feet Meters
Length 160 48.77
Width 36 10.97
Depth 12 3.66
Draft 10.3 3.15
Speed 13 Knots
Consumption Gallons/Hour







PARTICULARS
Flag US
Year Built 2013
Last Dry-dock Currently in Dry-dock
Location Louisiana
Class USCG
GRT/NRT 81/55
624/187 ITC
DWT
Open Deck Area 3,364 Square Feet
Complement 32 Berths
6 Full Heads

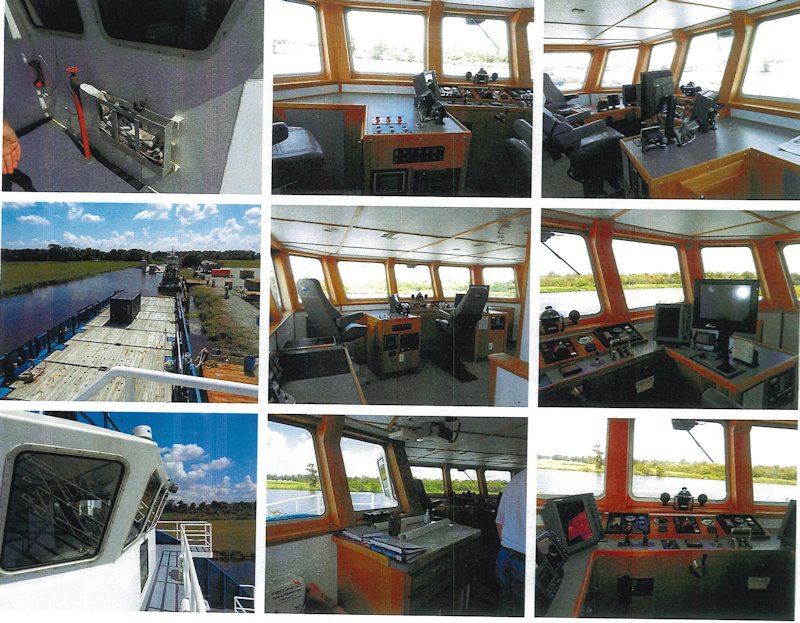

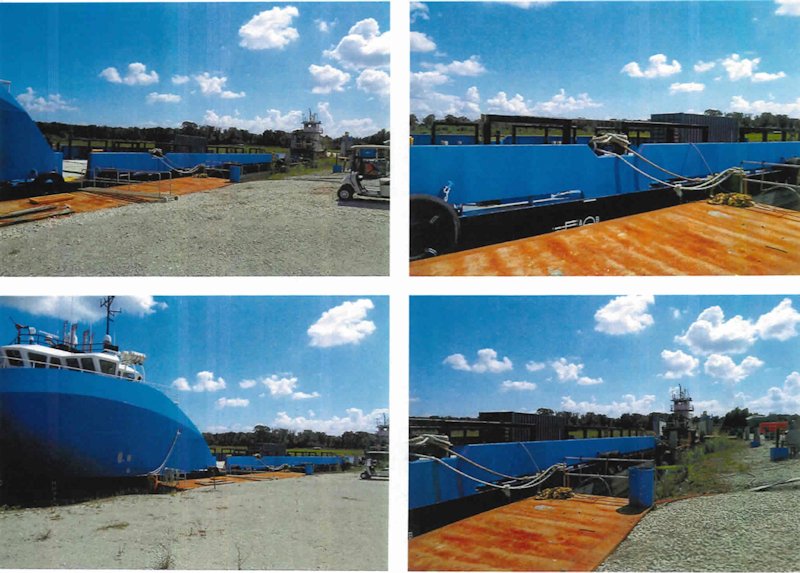

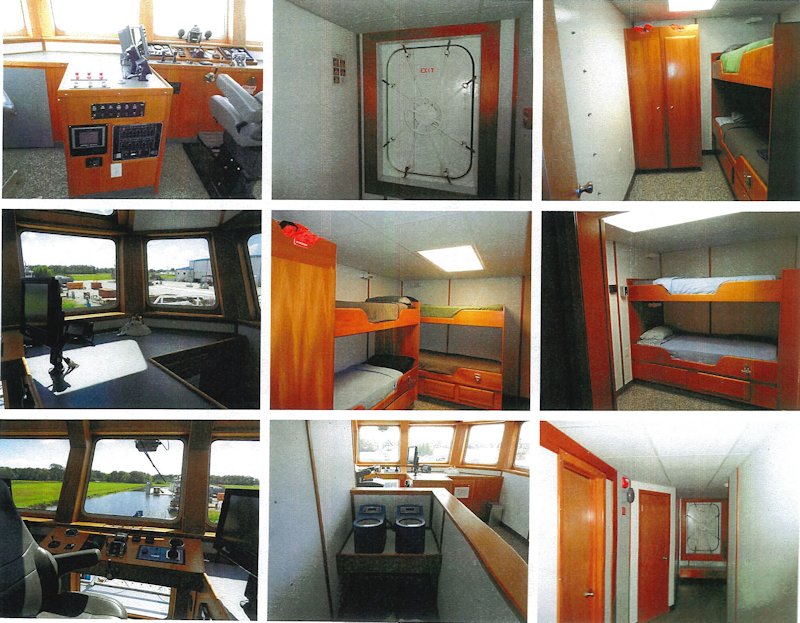

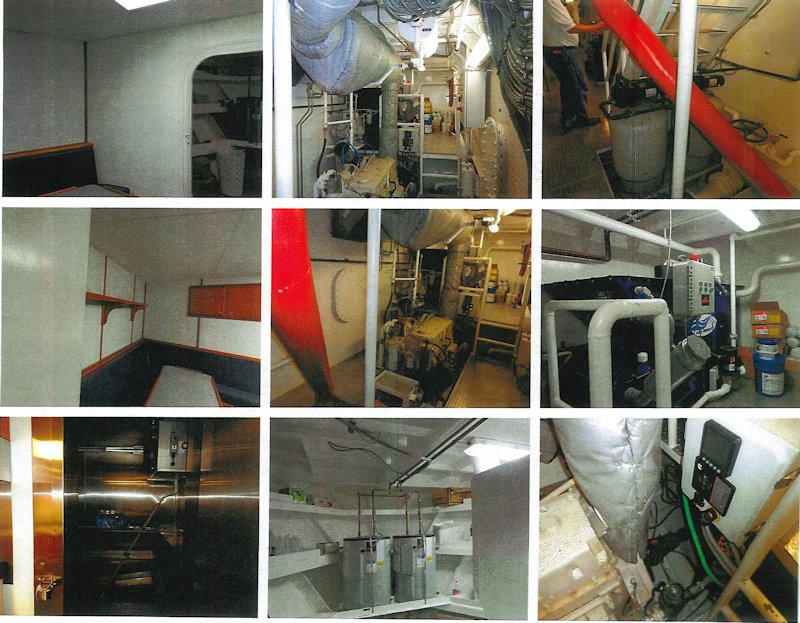

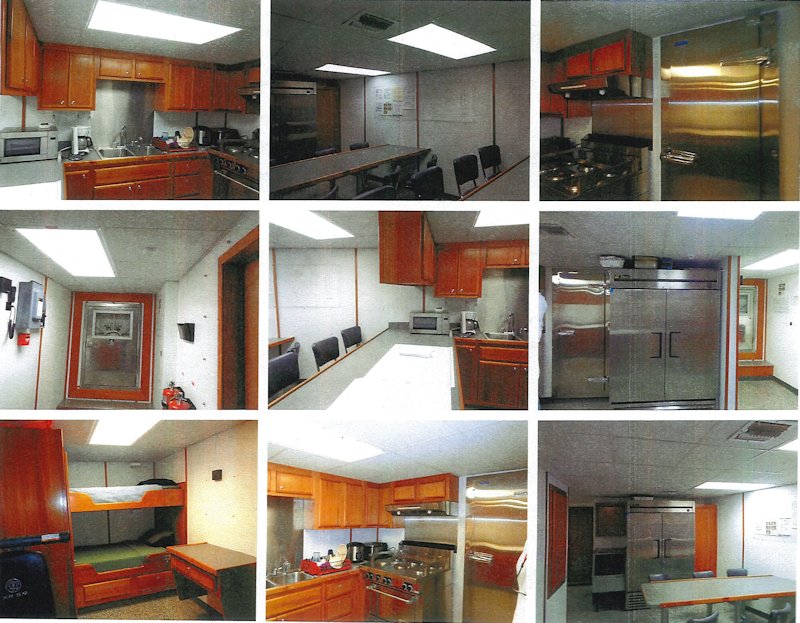

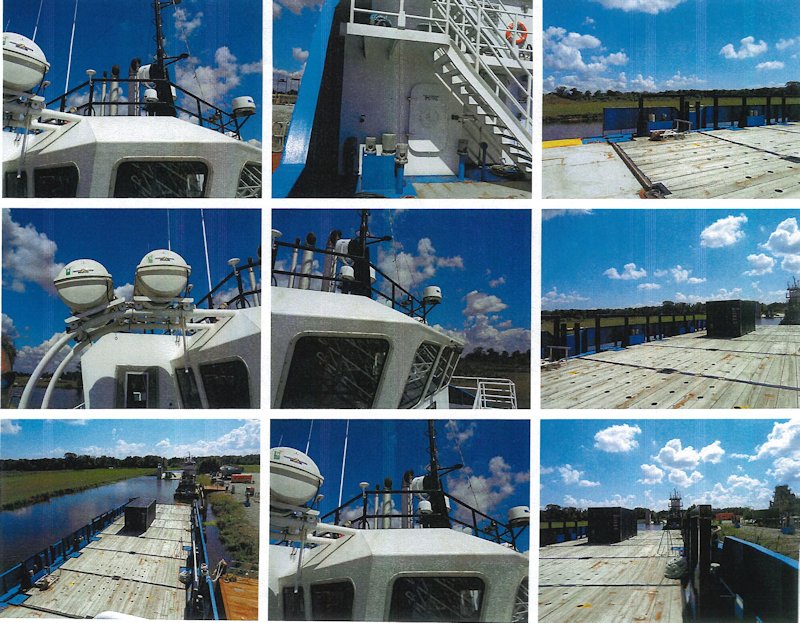

MORE INFORMATION AND PICTURES BELOW



Power

Main Engines

2 - Cummins K38M Tier 2 - 2,000 Total HP

Reduction Twin Disc MGX-5321
DP1 System Beier Radio with 2 15" LCD touch Screens with Joystick
Generators 2 - Cummins QSM11 300 KW each
Bow Thruster Brunvoll Model FU37 CCP with
Cummins QSM-11 350 HP
Compressor 2 - Quincy F325






Tankage

Fuel

54,824 Gallons

Liquid Mud 70,838 Gallons
Potable Water 13,460 Gallons
Ballast Water 92,328 Gallons Can be used as Potable
Liquid Mud 1,700 Barrels
Lube Oil 840 Gallons
Sewage 950 Gallons
