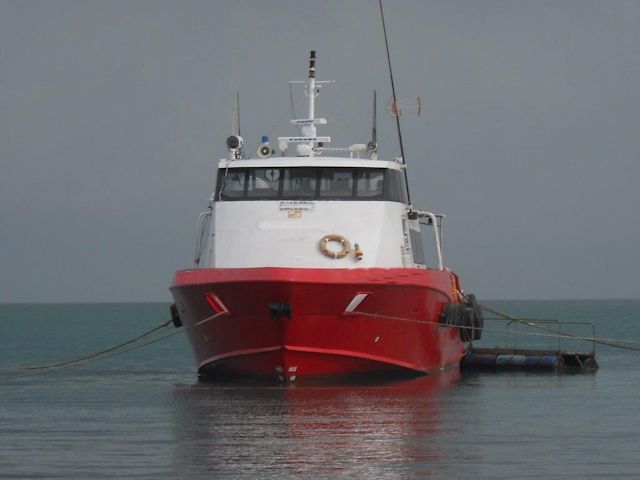

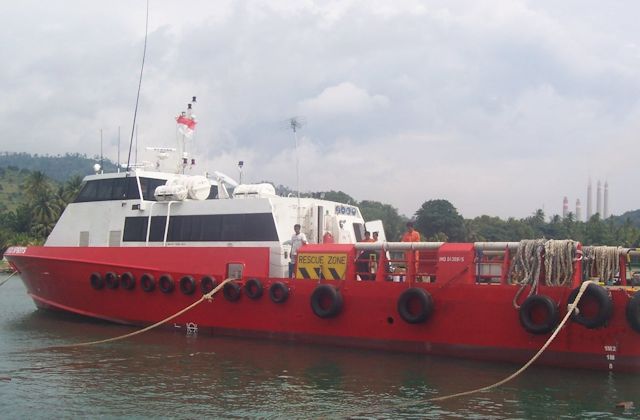

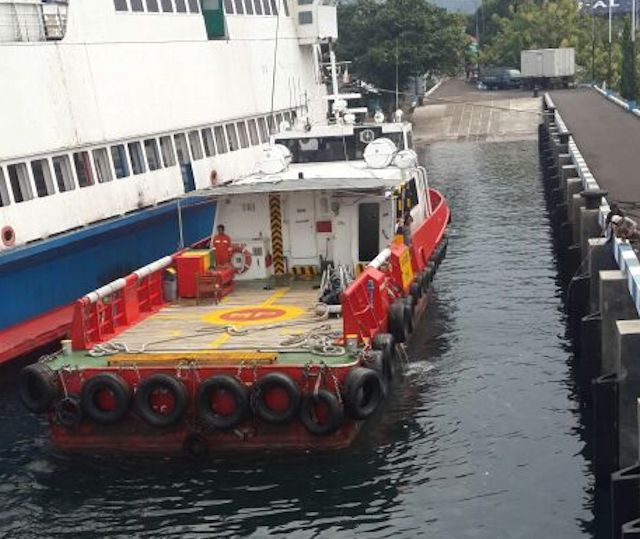

Crew Boat

Press to Return to Supply Vessels Press to Return to Home Page

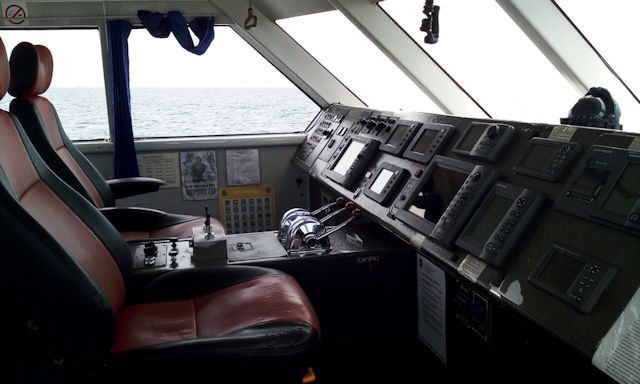

  The crew area, passenger area and wheel house are all air conditioned.

VESSEL IDENTIFIER: NEL10

Price: U.S. $2,110,000.00 FIRM

DIMENSIONS

Feet Meters
Length 92.5 28.2
Width 22 6.7
Depth 8.2 2.5
Draft 4.92 1.5
Speed 15-18 Knots Economy
19-21 Knots Full
Consumption 360 Liters/Hr. Economy
375 Liters/Hr. Full

PARTICULARS
Flag Indonesia
Year Built 2006
Last Dry-dock 08/10/2014
Next Special Survey 05/07/2014
Location Indonesia
Class BKI & Bureau Veritas
GRT/NRT 113/34

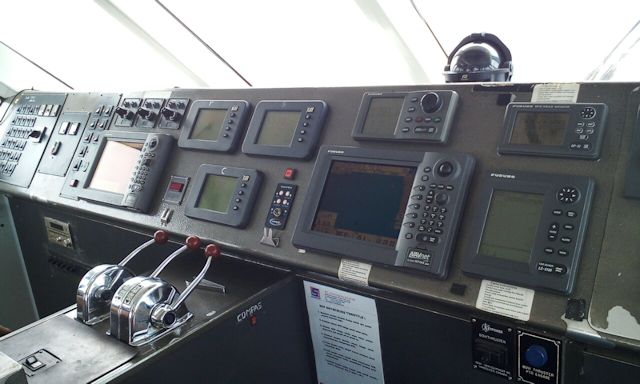

Electronics Full Compliment

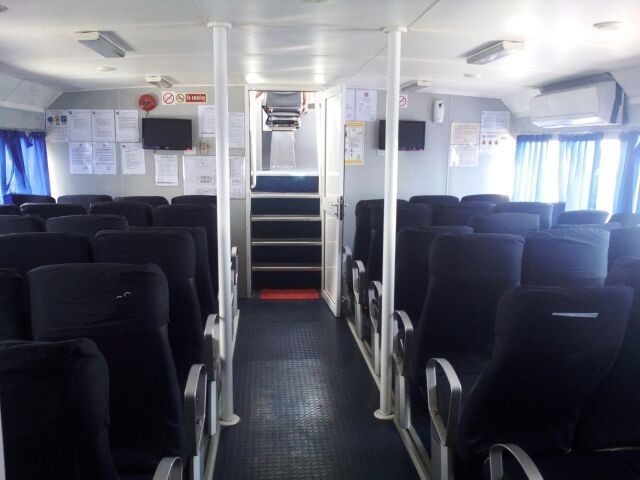

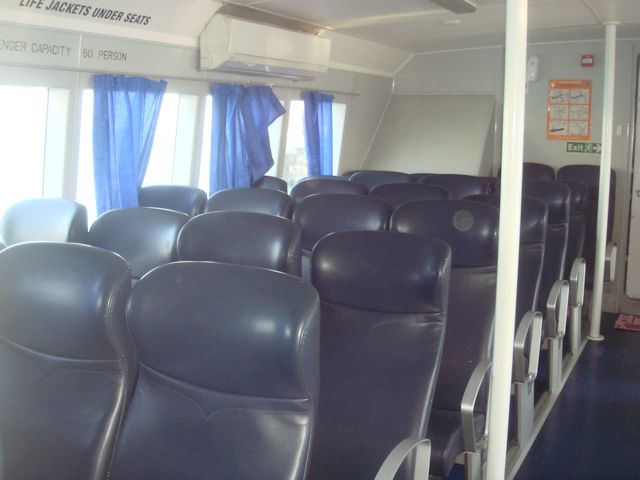

Seating 60
Crew Complement 4 Berths/Galley/
Bathroom

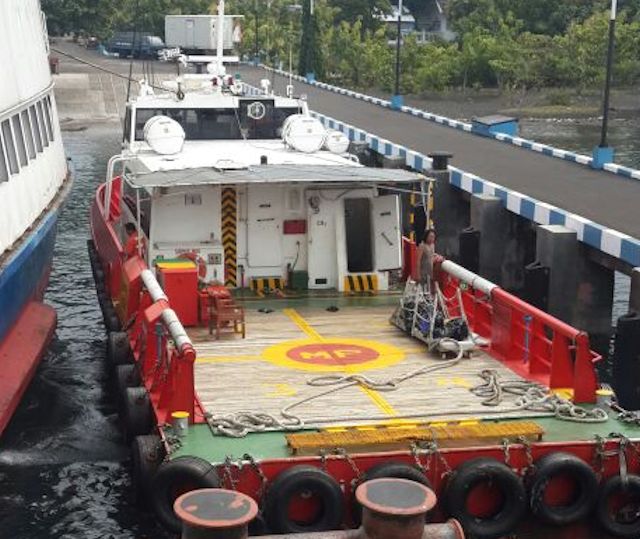

Deck 11.0M x 5.6 M
61.6 M2
1.5 Tons/M2

MORE INFORMATION AND PICTURES BELOW





Power

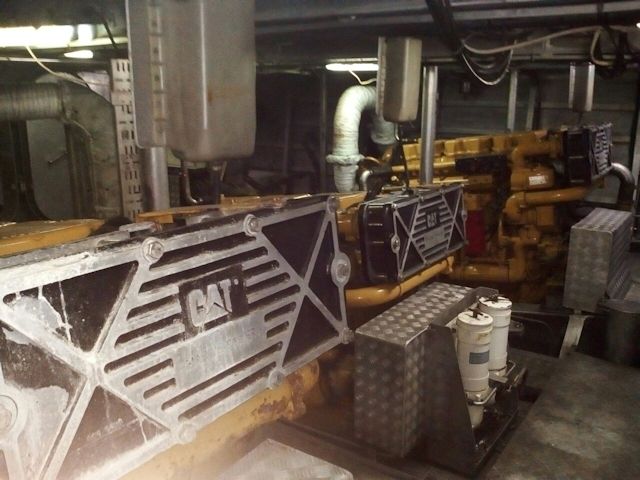

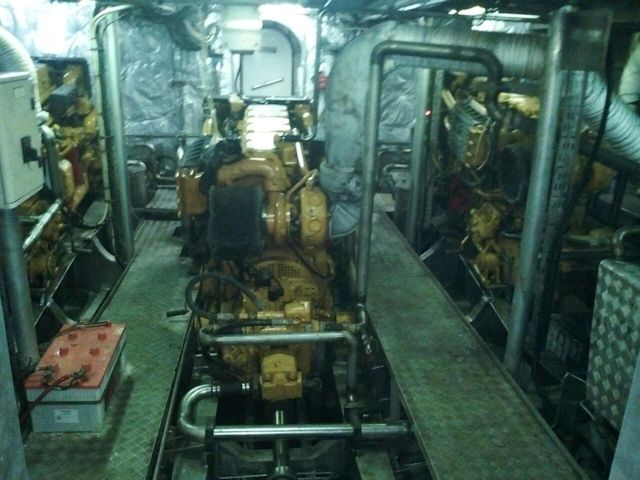

Main Engines

3 - Caterpillar 3406 E
1,800 HP Total

Reduction 3 - Twonm Disc
MG 5224SC
Propeller 3 - Fixed Pitch
Generators 2 - Yanmar 30 KVA 50 Hz.
Bow Thruster Ken Power KP16 HD 1,550 Lbs.. Thrust
Fuel Storage 419,000 LitersMGO
Water Storage 5,000 Liters
