DP-2 Supply Vessel with Crane

Press to Return to Supply Vessels Press to Return to Home Page

  4 Point Mooring system with 4 Delta Flipper Anchors (4,000 KG)

VESSEL IDENTIFIER: NGW10

Price: U.S. $20,000,000.00 PRICE REDUCED TO $16,500,000.00 FIRM

DIMENSIONS

Feet Meters
Length 246 75
Width 65.6 20
Depth 21.3 6.5
Draft 16.4 5
Speed 11.5 Knots Cruise
Consumption Gallons/Hour

PARTICULARS
Flag Malaysia
Year Built 2009
Last Dry-dock 2014
Location Malaysia
Class Bureau Veristas
GRT/NRT 334#
DWT 3,100 MT
Crane 1x7.5/10 J Lattice Boom Marine Crane 40 Tons
Complement 194 Bunks

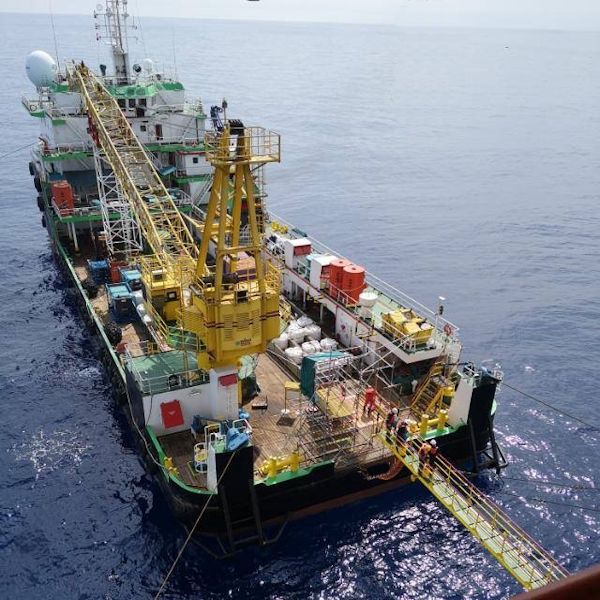

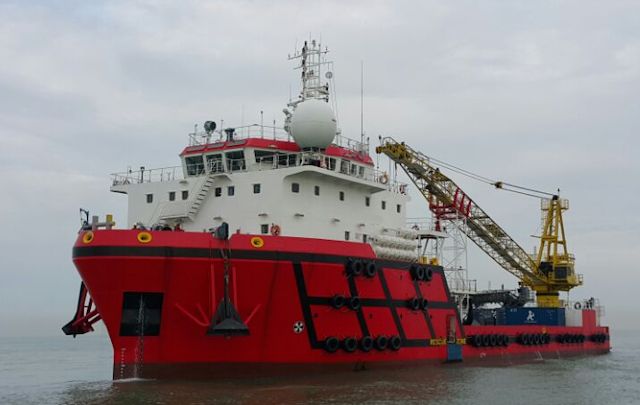

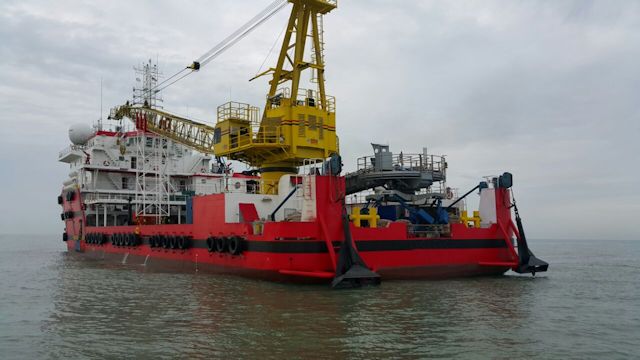

MORE INFORMATION AND PICTURES BELOW





Power

Main Engines

2 - Caterpillar 3516B 2,575HP Each, 5,150 Total

Reduction 2 - Twindisc 5.04:1
Propeller 2 - Azmuth Thrusters - 2.6 Meter Diameter
Generators 2 Cummins 500KW 415/3Ph/50Hz
1 - Cummins 150KW 6CTA Emergency
Bow Thruster 2 - 12 Ton Kawasaki CPP
Fuel Storage 450 MT MGO
Air Compressor 2 - 17 M3/Hr. x 30 Bar
Moon Pool 2.6x2.6M
Stabalization Flume Tanks
