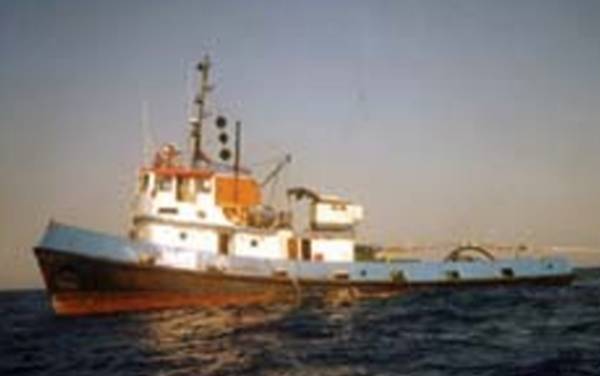

Tugboat

For Sale or Charter

Press to Return to Tugboats Press to Return to Home Page

This tug includes around $70,000.00 in spare parts according to the owner.  The vessel has a 14 foot Kaptan Fiberglass Rescue boat with 20 HP Johnson Motor and 1 - 12 person and 1 - 10 person Hydrostatically released Life rafts. The tug has Vickers Electric Hydraulic Ram type steering.  It has a two hand operated fire monitors with a total capacity of 3,182 liters per minute and 2 Hamworthy series C horizontal centrifugal diesel powered fire pump.

VESSEL IDENTIFIER: PIC10

Price: U.S. $ 300,000.00

DIMENSIONS

  Feet Meters
Length 100 30.5
Breadth 25.5 7.78
Depth
Max. Draft 13.5 4.12
Speed 10 Knots
Range





PARTICULARS
Flag
Year Built 1965
Last Dry-docked
Location
Class None

GRT

204
Net R. Tons 61

MORE INFORMATION AND PICTURES BELOW

Power

Main Engines

Ruston & Hornsby 6ACTM 4 Stroke 6 Cyl. 1465 HP
Reduction Michell Thrust Block Moder Wheel drive reverse reduction gearbox
Propeller Fixed pitch Kort Rudder
Generator 2 - 220 V DC 40 Kw driven by 90 HP Ruston Type 6YDZ
1 - 220 V DC 25 KW driven by Ruston Type 3YDZ
1 220 V AC 22 KVA Perkins
Deck Windlass Reids, Hand & Electric 15/15" dia stud link cable with 10 HP lifting speed of  10-20 meters/minute
Warping Winch Electric 2 warping drums, 20 HP 220 V DC 3 tons at 15 meters/minute or 1.5 tons at 30 Meters/minute
Tow Hook 1 Spring Hook Alexandra Design
1 Liverpool Slip type Hook
Bollard Pull 22.3 Tons
Crane  1 - 4 Ton HAIB
Water Capacity 16 Tons
Fuel Capacity 42 Tons



Navigation Equipment
Radar 2 - X Band Koden MD 3441
GPS Si-Tex Explorer II Chart Plotter
Auto Pilot Cam Nav Marine 2001
Echo Sounder Yes
Radios 1 VHF DSC Sailor RT 4822
1 VHF Sailor RT2048
1 Icom MF/HF Transcever
1 Icom MF/HF DSC GMDSS
Other Equipment 2 - GMDSS Compatible hand held VHF
1 Epirb
1 Sart
