Anchor HandlingSupply Vessel

Press to Return to Supply Vessels Press to Return to Home Page

This fully equiped vessel has a full compliment of electronics, life saving equipment and more.

VESSEL IDENTIFIER: ZAW10

Price: U.S. $13,500,000.00

DIMENSIONS

Feet Meters
Length 229.68 70
Width 55.1 16.8
Draft 20.0 6.1
Speed 14 Knots
Consumption

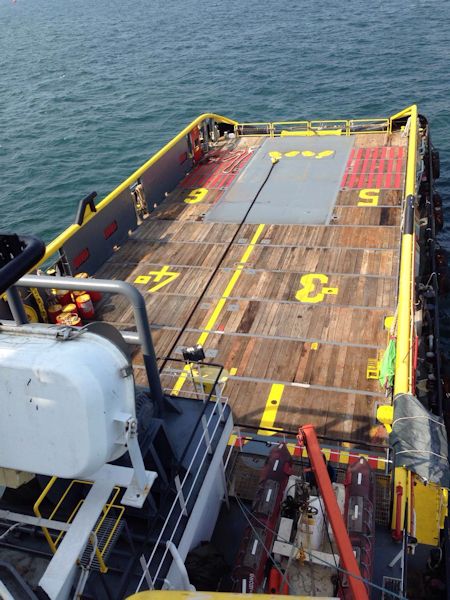

Deck Area 500 M2
7.5 Tons per M2

PARTICULARS
Flag Malaysia
Year Built 2004
Where Built Singapore
Location Malaysia
Class BV
Last Dry-dock 2014
DWT 2000
GRT 2690
Complement

40 Crew Bunks
12 - Single Cabins
14 Double Berth
1 - Captain

MORE INFORMATION AND PICTURES BELOW





Power

Main Engines

2 - Wartsilla 8L32 10,880 BHP Total
Propeller 2 - CPP Wartsila Lips Bronze
Bollard Pull 135 M/T
Bow/Stern Thruster 2 - 680 KW CCP Kawasaki 10 T Bow
1 - 680 KW CCP Kawasaki 10 T
Generators 2 - Caterpillar 3408 370 KW 60 Cycles
1 Caterpillar 80 KW Emergency
2 - 2,300 KW Shaft Alternators
Water maker 2 - 4.9 Cu M. Each
Potable Water 360 Cubic Meters
Fire Pumps/Monitors 2 x 1,500 m3/hour
1 x 35 m2/hour emergency
2 x 1,200 M3/hour
Fuel Storage 1260 M3Cubic Meters
Anchor Handling

1 - Brattvaag LS 300W/2BS300W
2 x 900 mm x 2m599 nn x 1,800 m m

Winch Waterfall Type
1 - 900 MM x 2,650 mm x 2,100 mm
Deck Crane 1 2.2 Tons@12.2 M/5.9 T @ 6 M
Capstan 2 - 10 Ton
Other Tank Capacities
Approx.
Drill Water 440 M3
Liquid Mud 409 M3
Brine 81 M3
Bulk Cement 4 x 2000 feet 2
