DIMENSIONS |
||
| Feet | Meters | |
| Length | 222.2 | 67.75 |
| Width | 47.56 | 14.5 |
| Draft | 19.3 | 5.88 |
| Speed | 12 Knots @ 30 Tons gasoil/hour | |
| Consumption | 7.3
Tons at 10 Knots 14.6 Tons at 12 Knots |
|

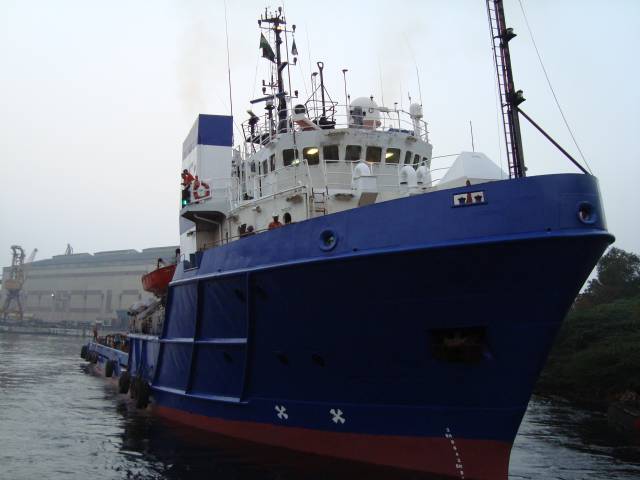

De-Listed - Offshore Tug/Supply Vessel
This is a professionally maintained vessel that is ready for the job.
VESSEL IDENTIFIER: GLA11
Price: U.S. $6,500,000.00
DIMENSIONS |
||
| Feet | Meters | |
| Length | 222.2 | 67.75 |
| Width | 47.56 | 14.5 |
| Draft | 19.3 | 5.88 |
| Speed | 12 Knots @ 30 Tons gasoil/hour | |
| Consumption | 7.3
Tons at 10 Knots 14.6 Tons at 12 Knots |
|
| PARTICULARS | |
| Flag | Panama |
| Year Built | 1983 - Korea |
| Class | Lloyds +100A1, +LMC UMS Tug/Supply Class 1 |
| Location | Indonesia |
| Next Special Survey | Sept 2012 |
| Periodic surveys | By March 2010 |

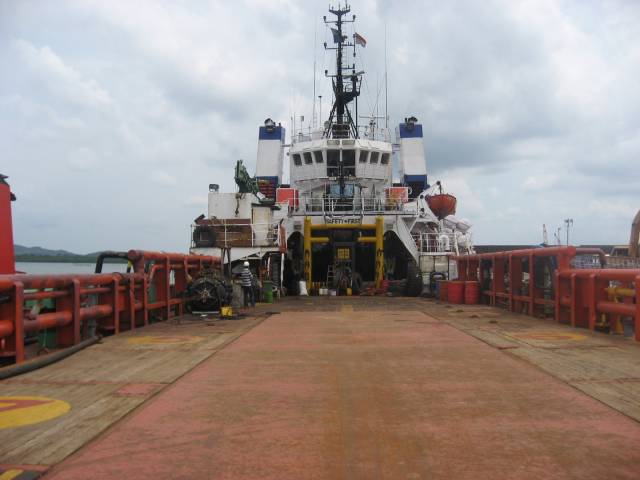

| Deck Cargo | 550 Tons |

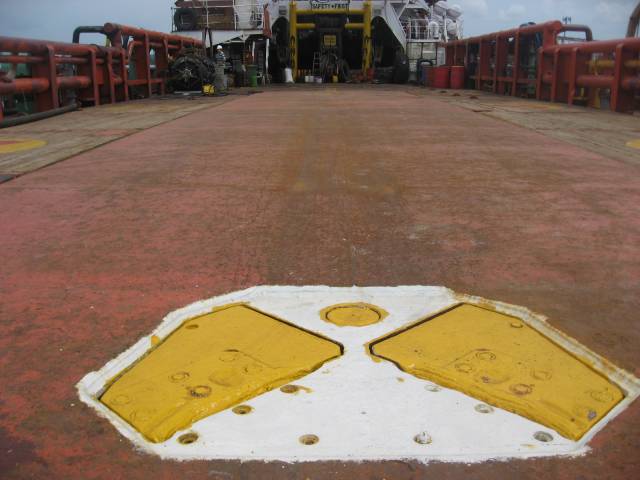

| Clear Deck | 36.0 M x 11 M 423.5 Cubic Meters |
| Deck Strength | 5 T/SQM |
MORE INFORMATION AND PICTURES BELOW
| Power | |

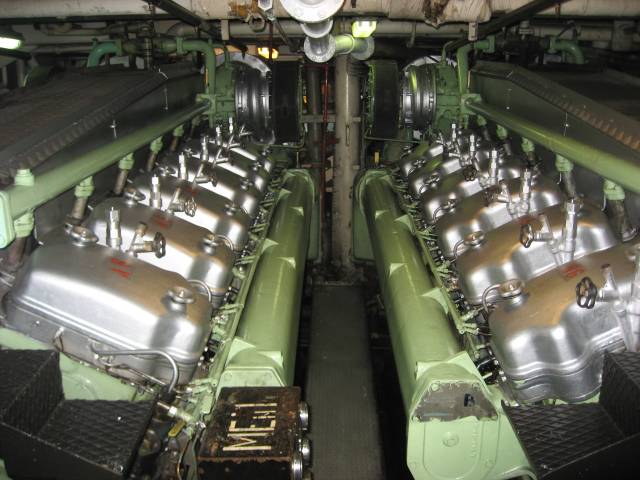

Main Engines |
4 - Bergen
Diesel Type KVMB-12 |
| Propellers | 2 Ulstein Controllable pitch in Fixed Nozzles |
| Bow Thruster | 1 - Stern 800 BHP Ulstein
Electric 2 - Bow 800 BHP Ulstein Electric |
| Bollard Pull | 110 Tons Continuous |
| Generators | 2 - Shaft Generators 1,570 KVA 2 - Caterpillar Generator 250 KW Each 1 - Caterpillar Generator 94 KVA |
| Fuel Capacity | 937 Cubic Meters |
| Domestic Fuel | 520 Cubic Meters |
| Drill Water | 681 Cubic Meters |
| Rig Fuel Oil | 417 Cubic Meters |
| Potable Water | 330 Cubic Meters |
| Deck Equipment | |
| Capstans | 1 - 8.5 Ton Hyd. on Focsle Head 2 - 5 Ton Hydraulic.on aft deck 2 - 5 Ton Hyd. tugger winches |
| Tugger | |
| Towing | Brattvaad Hydraulic Triple Drum Waterfall
type with 250 tons pull and 400 Tons Static Holding 2 Anchor handling drums for 1,000 meter 64 mm Diameter wire 1 Towing drum 1,000 m 64 mm tow wire |
| Wildcats | for 3"/76 mm Rig chain |
| Crane | 1 5 Ton at 9 Meters |
| Storage Roller | 1 - 350 Ton SWL with 1.8 M. Diameter and 3.66 M Length |
| Towing pins | 2 Hydraulic permit side pressure 50 Tons |
| Anchoring System | Hydraulic Winch with 24 shackles of 36 mm
chain 1 deep water anchor winch with de-cluchable drum cap of 1,500 m of 328 mm wire and remote controlled from wheelhouse. Anchoring depth 400 Meters |
| Navigation/Electronics | |
Radar |
1 - Decca Bridge master 250 (10 cm) 1 - Decca Bridge master 180 (3 cm) plus slave monitor MX 400 Professional |
| Autopilot | Robertson |
| DGPS Navigation | Trimble 4000DS DGPS Positioning eqm Including Hydro Nav. package software |
| Compass | Gyro RGC-11 |
| Other Electronics | Full Package |
| Joystick | Ulstein |
| Accommodations | |
Rooms |
13 Single Cabins 1 x 2 + 2 x 4 Person Cabins |

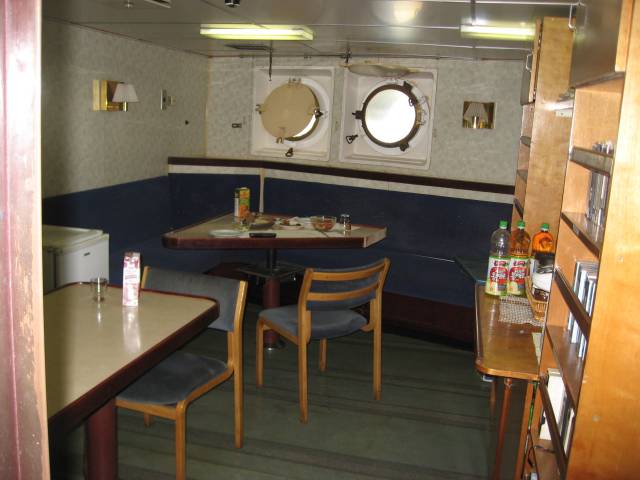

| Dining/Mess | Yes |
| Recreation | yes |
| Environment | Fully Air Conditioned and heated |
| Cargo Pumps/Discharge rates | |
| Fuel Oil | 150 Cubic meters/hour |
| Drill water | 100 Cubic Meters/hour |
| Potable Water | 1 - 150 Cubic Meters/hour |
