De-Listed - Anchor Handling Tug Supply Vessel

Press to Return to Supply Vessels Press to Return to Home Page



VESSEL IDENTIFIER: HAJ10

Price: U.S. $1,265,000.00 FIRM

DIMENSIONS

Feet Meters
Length 170 51.8
Width 36 10.9
Draft 14 4.3

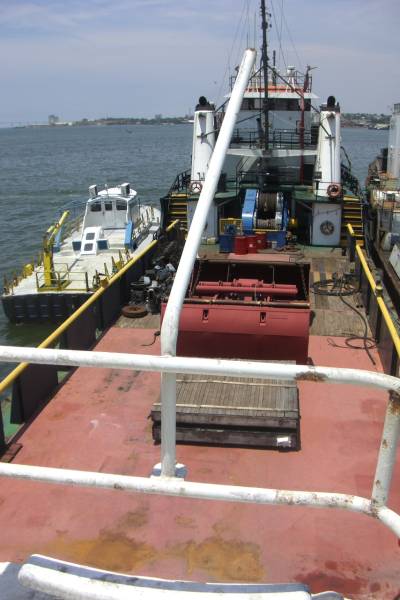

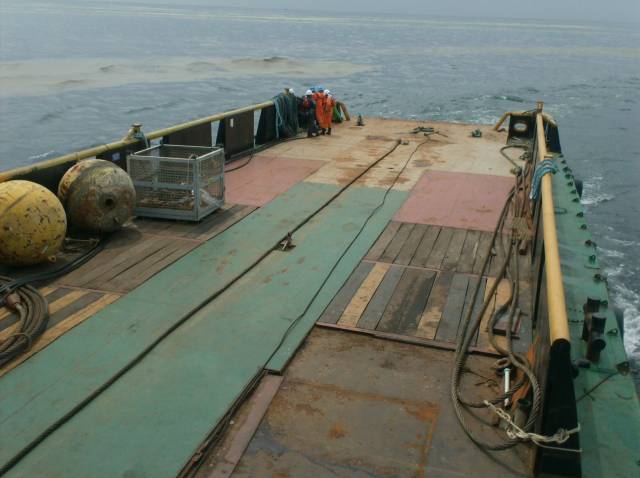

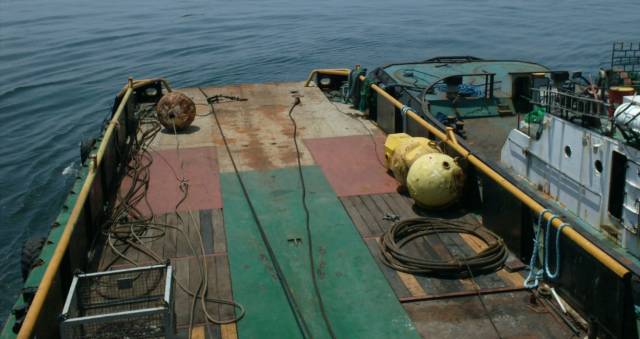

Cargo Deck Area 99.7 x 29.8 30.4 x 9.1
Speed 14 Knots
12 Knots
8 Knots
Range 511 Liters/Hour at 14 Knots
352 Liters/Hour at 12 Knots
178 Liters/Hour at 8 Knots

PARTICULARS
Flag Venezuela
Year Built 1974
Where Built USA
Location Venezuela
Class Former ABS
Last Dry-docking 2006
GRT/NRT 53#/160
DWT 540
Complement 16 People in 8 Rooms All Air conditioned

MORE INFORMATION AND PICTURES BELOW

Power

Main Engines

2 - Nohab Polar SF18VS 1,540 HP each  3,080 HP TOTAL
(Port engine re-built)

Generator 2 - 100 KW Each Detroit Diesel 8V71
Propeller 2
Bow Thruster 1 - 300 HP Bird Johnson Hydraulic & 8V71 Detroit
Fuel Capacity 400,000 liters

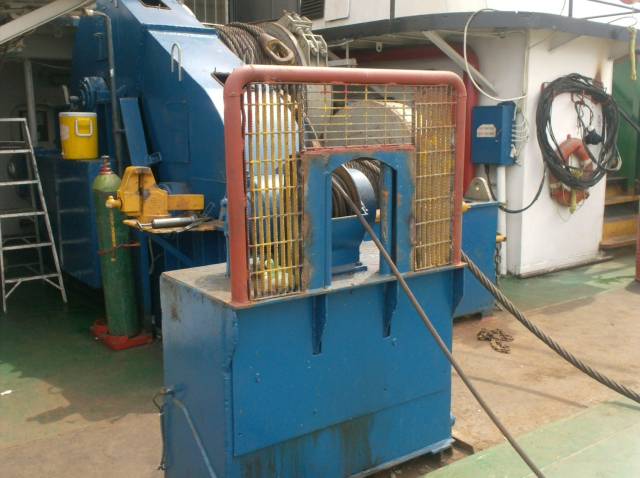

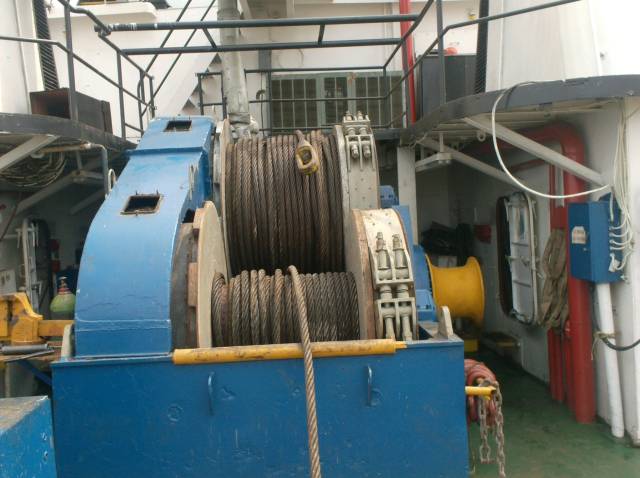

TOW WINCH SAMATCO
66 DAW 200 Double Drum
125 Ton Capacity
914 Meters of 2 1/4" Cable
Windlass Markey VEW 16-60
Fire Fighting Pump Detroit Diesel 4-71 Motor
 INCLUDED IN SALE
Also the price includes:
- two (2) complete shaft new (8"x48'+/- each)
- four (4) propellers (in very good conditions)
- Overhaul kit for a main engine.
- Also, with 92.000 Lts of diesel on the tanks.

Cargo and Tankage
Deck Cargo 370.8 Tons
Water 156.7 Tons
Fuel Oil 312.7 Tons
Potable Water 106.5 Tons
Dry Cargo 57.2 Cubic Meters
