VESSEL IDENTIFIER: JJJ10
DIMENSIONS |
||
Feet | Meters | |
Length | 127 | 38.7 |
Width | 32 | 9.76 |
Depth | 14 | 4.3 |
Draft | 12 | 3.66 |
Speed | 12 Knots | |
Consumption | 70 gallons/Hr. |
PARTICULARS | |
Flag | Guyana |
Year Built | 1967 |
Last Dry-docked | Dec. 2015 |
Class | No |
Location | Trinidad |
GRT | 294 |

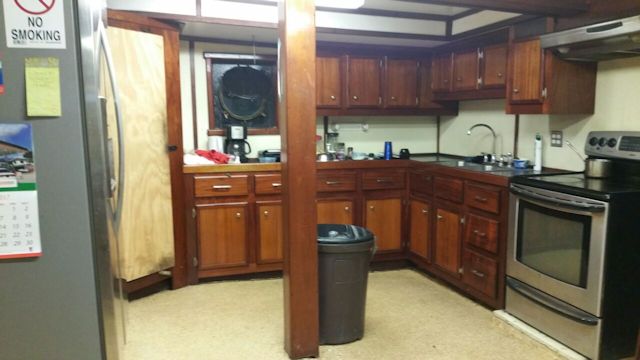

Accommodations |
8 Bunks in 5 cabins |
MORE INFORMATION AND PICTURES BELOW
Power | |
Main Engines |
2 - Fairbanks Morse 38D 1/8 5,000 Total HP |
Bow Thruster |
No |
Propeller | 5 Blade Stainless Steel, Twin Screw, 115” D x 81” P |
Bollard Pull | 30 Tons |
Winch | Burrard Hydraulic SD 110,000 lb of line pull 2,800 ft of 2 ¼” Cable |
Generator | (2) 99 KW 208 V, John Deere 9098 TA, Detriot Diesel 6-71 |
Fuel Capacity | 73,000 Gallons |
Water | 7,600 Gallons |
FIFI | (1) @ 5,000 GPM driven by 12V-9 |
