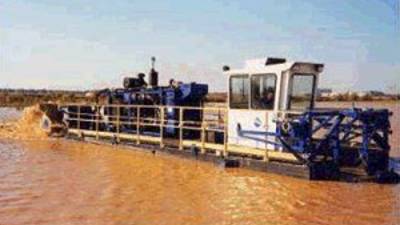

This Truckable 1999 IMS 5012 has only 600 Hrs. of time on it. It includes 2000 feet of 12" Pipe plus 300' of flexable pipe, and has Upgraded Electronics and is very well maintained. The pontoons are epoxy coated inside and outside for salt water service.
VESSEL IDENTIFIER: DL10
Price: U.S. $ 210,000.00
PARTICULARS |
||
| Feet | Meters | |
| Length | 41.5 | 12.65 |
| Breadth | 10.4 | 3.14 |
| Draft | 20 Inches | .49 |
| Displacement | 30,400 Pounds | |
| Pontoon | 14x3x3 12 Gauge Sides 10 Gauge Bottom Epoxy coated inside and outside |
|
| Main Pump |
Two Variable Displacement, Axial Piston Hydraulic Pump and a Fixed Displacement Hydraulic Pump Capacity: 160 gpm @ 2,000 psig, Reservoir: 85 gal. |
|
| Dredge Pump | Type: IMS Discharge Diameter: 12 in. Suction Diameter: 9.75 in. Impeller Diameter: 19.25 in. Sphere Passage: 6.0 in. Pump Performance: 5,000 gpm @ 85 ft. TDH (water) @ 800 rpm. Available rubber lined for use in abrasives |
|
| Hydraulic System | Pump: Two Variable Displacement, Axial Piston Hydraulic Pump and a Fixed Displacement Hydraulic Pump Capacity: 160 gpm @ 2,000 psig, Reservoir: 85 gal. |
|
| Cutter Head |
Cutterbar: Diameter 22 in. Length 108 in. |
|
| Working Capacity | Cut: 108 in. Wide X 22 in. Deep Working Depth: 22 ft. (Extensions available to 28 ft., 35 ft., and 45 ft.) extention for 28' on this unit Engine: Cummins Diesel Model 6CTA8.3, 6 cylinder, 250 HP @ 2,200 rpm Fuel Capacity: 220 gal. |
|
| Filtration | 100% return flow through a 10
micron filter and 5% of flow through a secondary 1 micron filter with water removal capability Circuit #1: Dredge Pump Circuit#2: Cutterhead, Boom, Winches and Starwheels Relief Valve: Dredge pump 2,500 psig Settings: Accessories 2,900 psig |
|
| Controls | Electronic joystick controls are provided in a heated, air conditioned cab | |
| Propulsion | STARWHEEL Drive Self-Propulsion
system, (cable drive optional). STARWHEELS are individually operated for high maneuverability |
|
