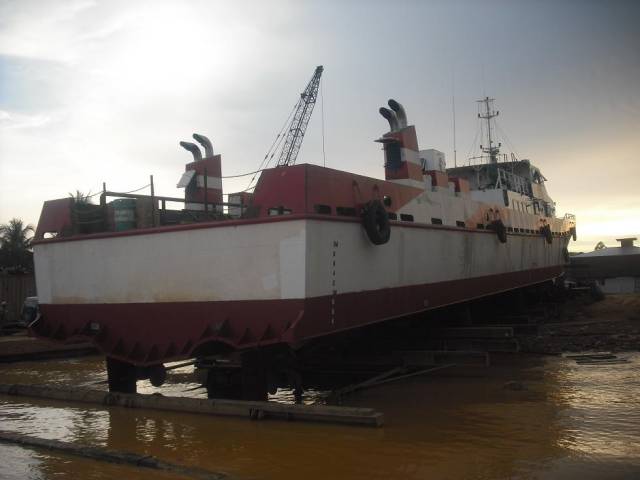

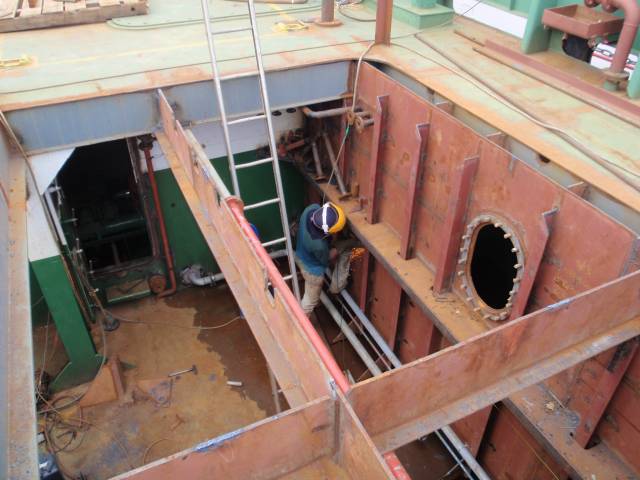

This supply vessel was built containers as a container carrier but lost her contract prior to commencement.  The current owner spend the past year converting her to a crew supply standby boat.  She is air conditioned with 2 single cabins plus 2 four men double cabins for a total of 10 crew members along with a restroom, mess room, kitchen, storeroom and laundry.  She also comes with a full compliment of modern new electronics.

VESSEL IDENTIFIER: DUA10

Click here for more photos

Price: U.S. $5,000,000.00 PRICE REDUCED $3,250,000.00.

DIMENSIONS

Feet Meters
Length 150.8 46
Breadth 26.24 8
Depth 11.97 3.65
Draft 8.2 2.5 Max
Speed 17 Knots Max
15 Knots Cruise
Consumption 450 Liters/Hr Max
410 Liters/Cruise
Crew Transport 12 workers but can be increased



PARTICULARS
Flag Panama
Year Built/Re-Built 2007 - 2009
Where Built Malaysia
Class Panama
Certificates ALL
GRT
DWT
Complement up to 10

MORE INFORMATION AND PICTURES BELOW

Power

Main Engines

2 - Cummins KTA50M2 1,600 HP Each
3,200 Total

Reduction 1 x Hang Zbou Advanced 3.1:1
Generators 1 - Mitsubishi S4KT 63 KVA/50 KW
2 - Cummins 6BT5.9 D 80 KW/100 KVA
Fuel Capacity 109 Tons (33,500 Gallons) (126,800 Liters)
Fresh Water Capacity 40 Tons (10,500 Gallons)
Propellers 2 x 4 blade 1,370 dia x 1,350 Pitch


Additional Features

Fire Fighting System

Water/Foam Monitor type Fog/Jet
Double Wheel Operated monitor
Calgon End-Suction Pump
Capacity 163m3/hour@80 Meter Head

Rescue Boat 4.5 Meter/6 person with 25 HP Mercury motor and BV Certificate
Cranes 1 - Port and 1 Starboard upper deck for standby boat and supplies
Electronics Complete compliment of electronics
