DIMENSIONS |
||
| Feet | Meters | |
| Length | 131.2 | 40.2 |
| Breadth | 26.8 | 8.2 |
| Draft | 11.5 | 3.5 |
| Speed | 9.0-9.5 Knots | |
| Consumption | 75 Liters/hour | |
SOLD - Tween Deck Coastal Cargo Ship
This ship was lengthened in 1985 and renovated in 2000. She includes a full electric package including C0-map chart plotter and color radar. There are 3 single and 1 double cabins. Bath and toilet with full modern galley. The owner reports that most electrical was renewed in 2007. In 1987 the ship was grit-blasted and galvanized so there is no sign of corrosion or rust under the flairs of paint. The thickness measurements indicate the steel is almost new. Owners have taken very good care of her.
VESSEL IDENTIFIER: LAN10
Price: U.S. $ 580,000.00 FIRM
DIMENSIONS |
||
| Feet | Meters | |
| Length | 131.2 | 40.2 |
| Breadth | 26.8 | 8.2 |
| Draft | 11.5 | 3.5 |
| Speed | 9.0-9.5 Knots | |
| Consumption | 75 Liters/hour | |
| PARTICULARS | |
| Flag | Norway |
| Year Built | 1968 - Norway |
| Current Location | Norway |
| Last Dry-docked | March 2007 |
| Class | DNV 1A1 R280 EO |
| Next Special Survey | 2010 |
| GRT/NRT | 383/219 |
| DWT | 513 |
| Lightweight | |
| Bale | 900 Cubic Meters Loads 860 big bags |
| Cargo Gear | 21 Meters SWL 2/4 Tons |
| Cargo Hold | 23.3 Meters Length, Beam between
bigger spants 6.75 Meters, between spants 7.65 M. Height lower hold
2.4 - 2.27 M. Height upper hold 1.3 Meters The tween deck is made of Steel |
| Hatch | 21 M. x 5M Coaming 1.4 M 4 Hinged pontoons in steel and aluminum with Hydraulic openers |

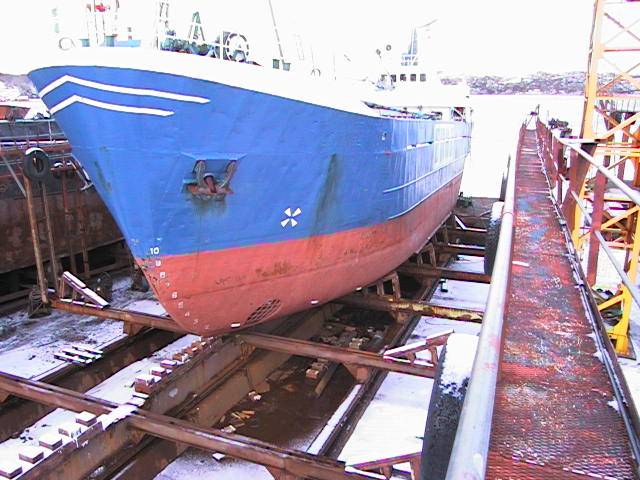

THE FOLLOWING ONE PHOTO TAKEN APRIL 2010
| Equipment | |
| Main Engine |
1 - Caterpillar 3412 - Model 98 620 HP - 37,500 hours since new in Dec. 2004. Rebuilt with new liners, pistons, crank bearings cylinder heads and oil pump |
| Propeller | Single |
| Bow Thruster | 130 HP Brunvoll |
| Generator | 3 - Deutz FL912-913 48
KVA fitted 2005 Scania DS11 turbo 250 KVA fitted 2005 |
| Gear | Mekanor made in 1993, overhauled in 2006 |
| Pump | One Desmi 2.5"
Ballast/fire 2 0- Desmi 2" Fresh water and spare emergency |
| Steering | |
| Anchors | 2 - 350 Kg with 6 shots on port and 5 shots stbd. 22 mm chain new in 2005 |
| Heating | Pyro Central heat - New February 2000 |
| Air-conditioning System | |
| Bunker Capacity | 15,000 Liters |
| Fresh water | 10,000 Liters |
| Ballast tanks | 8 with 118 tons |
