SOLD - Tugboat

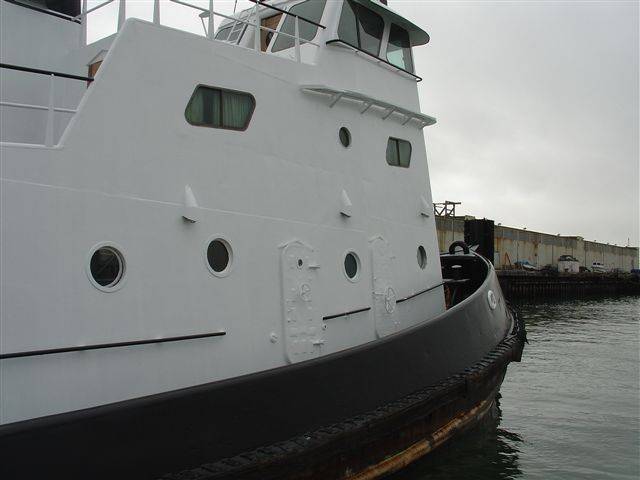

If you look carefully at the photos, this vessel is in exceptional condition. Note the fairness of the steel. She was 90% rebuilt in 1998 according to the owner and is exceptionally well maintained. The tug has a 25' eye height. She includes a full compliment of Electronics.
VESSEL IDENTIFIER: SCH10
Price: U.S. $
DIMENSIONS |
||
| Feet | Meters | |
| Length | 76 | 23.1 |
| Breadth | 23 | 7 |
| Depth | 11 | 3.35 |
| Draft | 9 | 2.74 |
| Speed | 11 Knots | |
| Range | ||
| PARTICULARS | |
| Flag | US |
| Year Built/Re-built | 1940/1998 |
| Last Dry-docked | June 2006 - San Francisco |
| Location | California |
| Class | |
|
GRT |
147 |
MORE INFORMATION AND PICTURES BELOW
| Power | |
Main Engines |
3 - One Caterpillar 398 (1994) Two Detroit 892's (1991) 1,600 HP Total |
| Propeller | Cat turns a 85"x76" Detroit's turn 2 - 44"x36" |
| Gears | Cat has a 4.3:1 Cat Gear Detroit's - Allison 3.7:1 |
| Winch | 1 Anchor 1 - Tow Winch 1500 1-1/8 Cable 2 - 40 ton electric Winches |
| Generator | 1 - Detroit 371 40 KW 1 - Northern Lights 55 KW |
| Fuel Capacity | 19,000 Gallons |
| Fuel Consumption | 50 GPH all three or 30 GPH for Caterpillar |
| Navigation Equipment | |
| Radar | |
| GPS | |
| Auto Pilot | |
| Echo Sounder | |
| Radios | |
| Other Equipment | |
