NEW - Truckable Push boat
NOTE: We have a builder for similar tugs,
this one went out of business

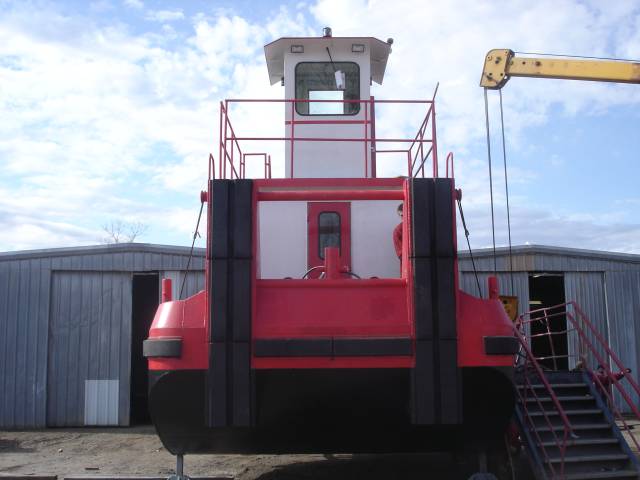

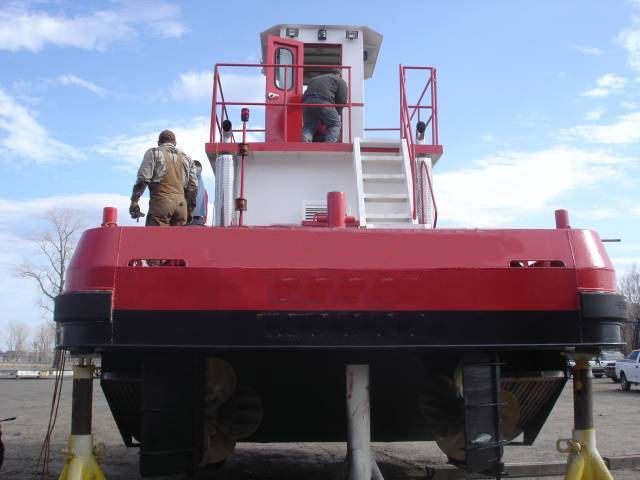

This fully equipped new Truckable Steel Construction Push boat can have an optional cabin with bunk beds, shower, head and sink. She has a 14 foot eye level and two 9 foot Push Knees with Johnson rubber on 1/2 inch plate. I have visited the facilities for the construction of the tugs and they do excellent work will surpass your expectations. See another of their tugs SM11. They are very capable of performing other marine construction of vessels so let us know if you need something else for your fleet including longer work tugs, barges etc.
VESSEL IDENTIFIER: SM10
Price: U.S. $
DIMENSIONS |
||
| Feet | Meters | |
| Length | 25'6" | 7.77 |
| Width | 14 | 4.27 |
| Depth | 5 | 1.527 |
| Draft | ||
| Speed | ||
| Consumption | ||
| PARTICULARS | |
| Flag | US |
| Year Built | NEW CONSTRUCTION |
| Navigation | Perko Running Lights |
| Location | |
| Class | No |
|
Construction |
Hull - 1/4" A36 Steel Hull in way of Prop 5/15 A36 Super Structure - 3/16" A36 |
| Shipping Weight | 44,500 LBS. |
MORE INFORMATION AND PICTURES BELOW
| Power | |

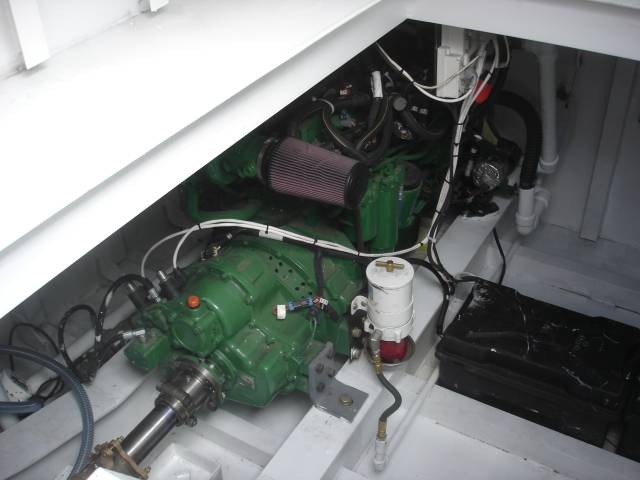

Main Engines |
TWIN
(Standard) John Deere 6081 @ 330 HP Each New
(Options for Standard) Remanufactured CAT 3126 @ 350 t0 385 HP each)
(Additional Cost Options)
Cummins QSL9 @ 405 HP Each Medium Continuous Duty Detroit 60 Series @ 400 HP Each |
|
Transmission |
(Standard) Twin Disc. 5075SC @ 2.88:1 or equivalent on request
(Additional Cost Options)
The Larger engines will require different size transmissions Twin Disc. 5095 or ZF 325 with ratios up to 5:1 |

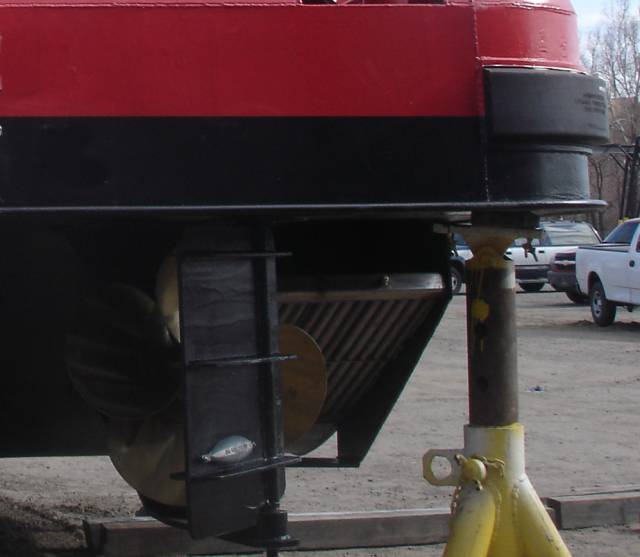

| Propeller | Two - 34" 18" Pitch |
| Shafts | 3" Stainless with Cutless Bearings |
| Helm | Manual Hydraulic or Power |
| Engine Room | Stand up/walk around 7' High |
| Electric | 12 Volt System |

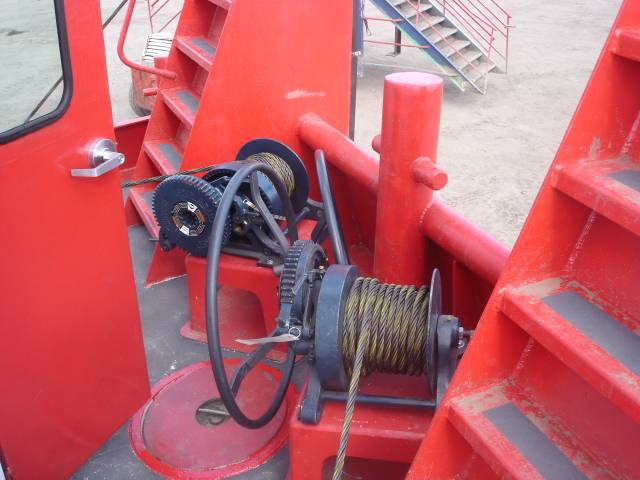

| Winch | 2 - Win Tek or BB |
| Generator | No |
| Fuel Capacity | 700 - 850 Gallons |
| Other Specifications | |
| Deck | Anti-Skid |
| Voids | Epoxy painted with 18" access |
| Rub Rail | Schedule 40 Halfpipe |
| Bulwarks | 12" high |
| Frames | 18" spacing |
| Button Chocks | 2 |
| Cabin Size | Height: 7' Width: 9' Length: 7' |
| Pilot House Size | Height: 7' Width: 4' Length: 4.5' |
