From the owners: Our company operates the research and diving vessel. During the last three years the vessel has conducted marine research programs in the Gulf of Aqaba (Red Sea) and undertaken two multi disciplinary research charters to the Seychelles Islands (Indian Ocean) under contract to the Israeli Inter University Institute (IUI) for Marine Sciences. Over the last ten years the vessel has chartered extensively throughout the entire length of the Red Sea from Sharm el Sheik (Egypt) to the Straits of Bab el Mandab (1200 nautical miles), operating in Egypt, Sudan, Yemen, Eritrea and Djibouti. In October 2000 the vessel participated in the U.S. Office of Naval Research Littoral Warfare Advanced Development experiment (LWAD) off the coast of Italy, in the Adriatic.

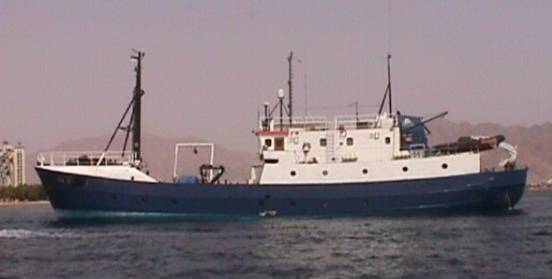

VESSEL IDENTIFIER: STB10
Price: U.S. $ 350,000.00
PARTICULARS |
||
| Feet | Meters | |
| Length | 110 | 33.5 |
| Breadth | 23.6 | 7.2 |
| Draft | 10.5 | 3.2 |
| Speed | 8 Knots | |
| Range | 30 Days | |
| PARTICULARS | |
| Flag | |
| Year Built | 1974 |
| Last Dry-docked | |
| Location | |
| Class |
Class: DNV +1A1 Ice-Class until 2005 |
|
GRT/NRT |
246/54 |
| Power | |
|
Main Engines |
B&W Alpha 550 HP |
| Reduction | |
| Propeller | Controlled pitch |
| Electrical | 2 Perkins 140 KVA Each 380V 50Hz 220 Volts from trafo 110 volts 50 Hz from Trafo 24 Volts DC |
| Refrigeration | 8 Cu. Meters Walk-in Freezer -20C 8 Cu. Meter Walk-in 4C |
| Water Capacity | 60 Tons |
| Fuel Capacity | 38 Tons |
Tenders: 2 x rigid inflatable Tornado 5.1 meter with Mariner outboards

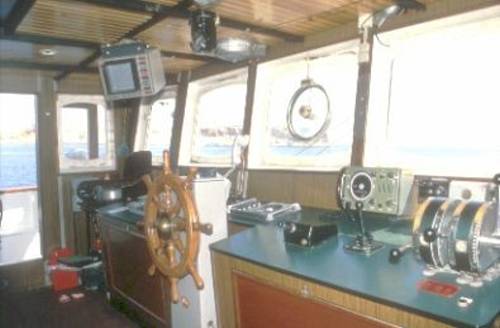

Navigation Equipment:
Main Compass: JLR – 10 GPS Heading and navigation compass JRC.
Autopilot: COMNAV 5001 linked to GPS
GPS Plotting: C-MAP NT System
Radar: Koden 48 miles day light display
Echo Sounder: Koden 640 metres, dual frequency. Interfaced to PC and GPS
Communications:
Satellite communication: SATCOM M Sailor
SSB Icom 700
SSB Sailor RT 64
VHF Sailor
VHF Icom + Handhelds
GMDSS ICOM
Manning Capacity:
9 Crew, 18 guests
Cabins: 9 guests cabins with twin berths.
Toilets: 5 Orca II EPA approved sewage treatment system
Showers: 5
Refrigeration:
Walk in, 8 cubic meter freezer at –20 C
Walk in, 8 cubic meter chiller at 4 C
2 x industrial fridges, 200 lit capacity each.
Hydraulics:
3 main hydraulic pumps from PTO main engine.
1 autonomous hydraulic pump for A-frame crane.
Deck equipment:
Anchor 1: hydraulic winch, steel wire rope ¾ inch. 180 metres. Weight of
anchor 480 kg for anchoring in deep, muddy or sand bottom.
Anchor 2: hydraulic winch, 20 mm chain, 180 metres. Weight of anchor 250 kg for
anchoring in shallow, rocky bottom.
Rope winches:
1. Main anchor windlass
2. Transverse rope windlass
3. Aft rope winch
Hydraulic cranes:
1. Hiab 550, located aft. Lifting capacity 1 ton at 4 ½ meters
2. Hiab 360, located midships. Lifting capacity ½ ton at 3 meters
3. A-frame, midships starboard side. Lifting capacity 2 tons (metric).
Diving Air:
2 x Mako compressors, 250 lt per minute at 300 bar.
300 lt air bank at 300 bar.
Nitrox filling station with 300 lt oxygen bank.
LP compressor: Bristol 50 lt per minute at 14 bar for pneumatic tools.
Passenger comfort:
Air-conditioning throughout the boat.
Well equipped salon and bar, TV, video, stereo system.
Film processing for E-6 slides.
Classroom and camera workroom on the accommodation level.
